Filler Metals for Gas Shielded Arc Welding (9) AWS A5.29:1998, Specification for Low Alloy Steel Electrodes for Flux Cored Arc Welding (10) AWS D1.1:2004, Structural Welding Code— Steel (11) AWS D12.1-75, Reinforcing Steel Welding Code (obsolete, superseded by D1.4-79) (12) AWS QC1-96, Standard for AWS Certification of Welding Inspectors CSA.

Aws D1.1 Structural Welding Code Free Pdf
Aws D1 1 Structural Welding Code
Aws D1.1 Structural Welding Code Pdf

AWS D1.1, Structural Welding Code - Steel. Scope of Endorsement (description) Section 2 of AWS QC1:2007, Standard for AWS Certification of Welding Inspectors, provides for endorsements that may be added to the CWI and SCWI certifications. Endorsements are defined in AWS QC1 as the approval of an additional skill documented in writing and added to a.
AWS D1.1/D1.1M:2010 An American National Standard Approved by the American National Standards Institute March 11, 2010 Structural Welding Code— Steel 22nd Edition Supersedes AWS D1.1/D1.1M:2008 Prepared by the American Welding Society (AWS) D1 Committee on Structural Welding Under the Direction of the AWS Technical Activities Committee.

Description

Section 2 of AWS QC1:2007, Standard for AWS Certification of Welding Inspectors, provides for endorsements that may be added to the CWI and SCWI certifications. Endorsements are defined in AWS QC1 as the approval of an additional skill documented in writing and added to a certification credential.

This endorsement covers four subject areas in AWS D1.1, material and design, fabrication, inspection, and qualification. Subject weights for each of these areas are in conformance with the codebook examination requirements as expressed in section 7.1 of AWS B5.1, Specification for the Qualification of Welding Inspectors.

Code Applications	Percent of Total Questions
Material and Design Fabrication Inspection Qualification	10 30 25 30
Note: Percentages indicate the minimum required for each category in an examination.

How endorsement will be expressed
Endorsements earned will be updated in the AWS certification profile. Status can be checked via the QR code on the back of the CWI wallet card or via the Quikcheck web link.

Continuing education credits
Not Applicable..

Comments on special conditions or requirements
Not Applicable.

Documents

CWI/SCWI Endorsement Application (PDF)
Applicant Instructions

As of January 1^st, 2021 candidates testing to D1.1 codebook will be using the 2020 edition. If you are taking an AWS Seminar, you will be using the 2020 edition.

Prices

Seminars

There are no mandatory training requirements. Candidates are encouraged to attend a seminar or self-study to become familiar with AWS D1.1.

Exams

All endorsement exams (with the exception of Structural Drawing Reading) will be offered all over the US in convenient locations using computer based testing with our partners at Prometric. After your application has been submitted to AWS and approved, you will be provided with an Authorization to Test (ATT) letter in order to schedule your appointment through Prometric at one of their centers.

Candidates seeking the AWS D1.1 endorsement shall pass an open book written examination consisting of 50 multiple choice questions in two hours. Candidates are required to use the AWS D1.1 Structural Welding Code - Steel to answer the questions. Candidates may not use photocopied versions of the standard unless they can supply evidence of purchase of the document.

Successful candidates must correctly answer 72% of the questions to receive this endorsement. Re-examinations for this endorsement shall be in accordance with section 6.2.5 of AWS QC1.

The most widely used welding code in North America, and perhaps the world, is AWS D1.1/D1.1M Structural Welding Code – Steel. It is specified as the quality standard in hundreds of contract documents every year. Yet, we find that less than half of the fabricators that need to use it have a sound understanding of how to follow what the code dictates. The number one reason why fabricators turn to AWS D1.1 is to qualify welding procedures and welders. However, this code contains much more than just details on the qualification process. D1.1 can be an invaluable tool that, when applied correctly, can prove to be a tremendous cost savings tool. The purpose of the code is to assure quality, so it reasons that when applied correctly and consistently the quality of the products you manufacture will increase. As quality increases and rework decreases substantial savings can be realized.

This code provides way more detail that you ever thought was available when it comes to making welds on structural components. Yet, it is extremely hard to follow if you have never been given proper instruction on how to do so. It is definitely possible to pick up the code and teach yourself how to use prequalified welding procedures and how to qualify welding procedures by testing. However, with proper instruction you can avoid costly mistakes that are inevitable when you go it alone. Or, at the very least, you’ll be able to speed up the learning curve.

If you ever have a chance to attend a D1.1 code clinic we encourage you to do so. D1.1 can be used as a basis for developing your own quality standards. As stated above, most of us only think of the welding codes only as instructions for qualifying welders and welding procedures and acceptance criteria for the inspection of welds. Welding codes contain much more than that.

Before you can take advantage of the AWS D1.1 you need to understand what it includes. Below we provide a brief description of each of the 9 clauses.

The 9 Clauses of AWS D1.1 CLAUSES

General Requirements – Provides the scope of the code including material thickness and strength ranges of structural carbon and low alloy steels. Also provides definitions for terms used throughout the code.

Design of Welded Connections – Spells out requirements for the design of tubular and non-tubular structures for both static and cyclic loading. This clause contains a wealth of engineering information that can help you design weldments properly and avoid costly overwelding. It includes information for designing structures for both static and cyclic loading. Need information on calculating allowable stresses? It’s all in this clause.

Understanding how to calculate the allowable strength for a given weld will allow you to design weldments and provide this information for the shop, rather than expect the shop to make engineering decisions such as the proper size of a weld.

Prequalification of WPSs – Provides the requirements that need to be met in order to be exempt from having to perform testing to qualify welding procedures. The use of prequalified welding procedures has many advantages including saving time and money. If you have subscribed to our weekly articles you know that we developed a step-by-step guide on how to follow Clause 3 of AWS D1.1 in order to simplify the development of prequalified welding procedures. There are a lot of requirements that need to be met. They are spelled out in the code, but can be a bit tricky at times. Become very familiar with this clause. It can save you a lot of money by avoiding unnecessary welding procedure qualification tests.

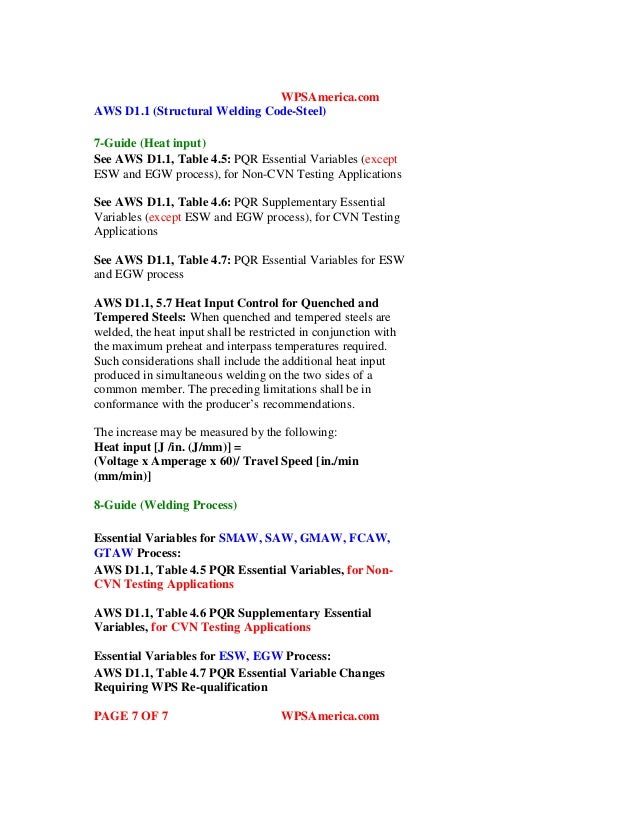

Qualification – Provides the requirements to qualify welding procedures, welders, welding operators and tack welders by testing according to code requirements. When prequalified welding procedures cannot be used then the qualification must be done by testing. This clause spells out all the requirements to qualify your procedures. Also, there is no such thing as prequalified welding performance, so all the qualification for welders must be done by testing according to Clause 4. Qualification of Welding Procedures, Welders and Welding Operators has step-by-step instructions on how to qualify procedures and welders.

This guide provides a proven step-by-step process to properly write prequalified welding procedures in conformance with AWS D1.1. Additionally, it provides step-by-step instructions on how to qualify welding procedures and welders by testing.

Fabrication – Details requirements for base materials, welding consumables and workmanship for the erection of steel structures. If you are welding structural steels you should take this clause and make it your go to when designing products. It contains instructions on many different aspects of fabrication including: storage of consumables, use of fabrication aids, certification of electrodes, ambient temperature restrictions, baking of electrodes, fabricating with weathering steels, preheat and PWHT as well as stress relief heat treatment instructions and many other mandates for proper fabrication of structures.

Inspection – Describes the requirements for qualification and responsibilities of inspectors. Provides proper procedures for inspecting welds visually as well inspection through other non-destructive methods. Clause 6 contains the acceptance criteria for the visual examination of welds for both statically and cyclically loaded connections. It also provide acceptance criteria for other types of nondestructive testing such as ultrasonic inspection (UT) as well as instructions on how to properly inspect welds with these NDE methods.

Stud Welding – Describes requirement for welding studs to structural steel. Stud welding is used extensively in the fabrication and erection of steel structure so there are requirements imposed by the code on this welding process.

Strengthening and Repairing Existing Structures – Provides the requirements for repairing and/or modifying existing structures. When working in accordance to specific welding codes such as D1.1, repairs need to be done according to the instruction approved by the engineer in charge. Repair procedures must be in place and followed. This clause provides information on design for strengthening and repair, fatigue life enhancement, workmanship and technique and quality.

Tubular Structures – Provides additional requirements specific to tubular (pipe and box) structures. In the current of AWS D1.1 (2015) a significant change was made as compared to the previous edition (2010). Everything related to tubular structures (pipe or box) was separated and placed into its own clause – Clause 9. This simplified qualifications by separating tubular and non-tubular connections.

Clause 9 is basically a stand alone code. It is broken up in 6 parts which mimic the rest of D1.1. The parts in Clause 9 are:

Design of Tubular Connections
Prequalification of Welding Procedures
Qualification of Welding Procedures (by testing)
Welder Performance Qualification
Fabrication
Inspection

Knowing what AWS D1.1 includes can be very useful as it can help you answer many questions that may arise during fabrication and inspection as well as during the qualification of welding procedures and welders. Also, if you are hoping to become a Certified Welding Inspector (CWI) you need to become familiar with codes. You can take part C of the CWI exam on D1.1 or other available codes such as D1.2, D1.5, D15.1, D1.17, API 1104 and ASME Section VIII and IX.
